Circuit diagram (pinouts) for SMARTY Trend units
Geschrieben am04.10.2016
von
Detailed description of the connection for SMARTY Trend units.
There are several modifications of SMARTY Trend models depending on the size of the main unit. Below are wiring diagrams:

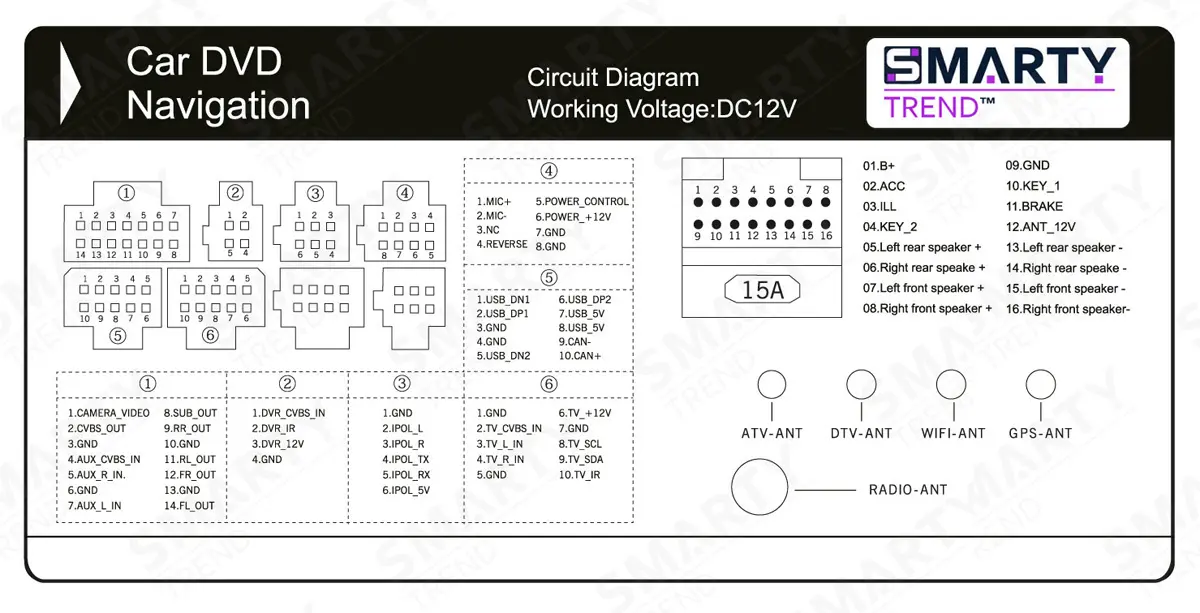

2-DIN head unit

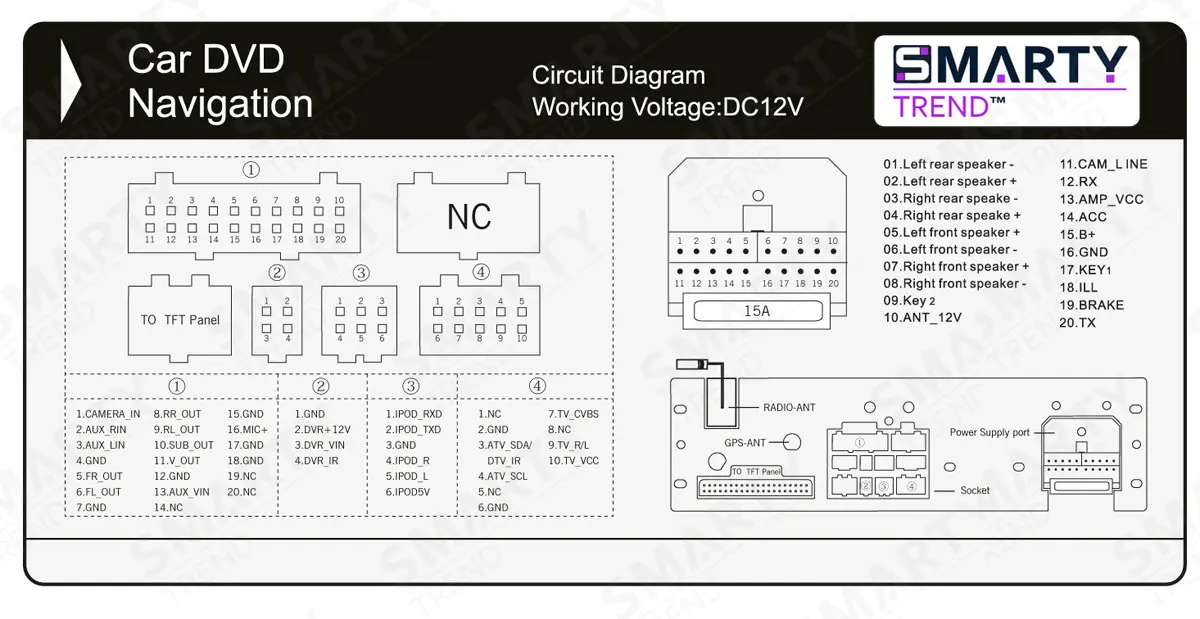

1-DIN head unit, model #1

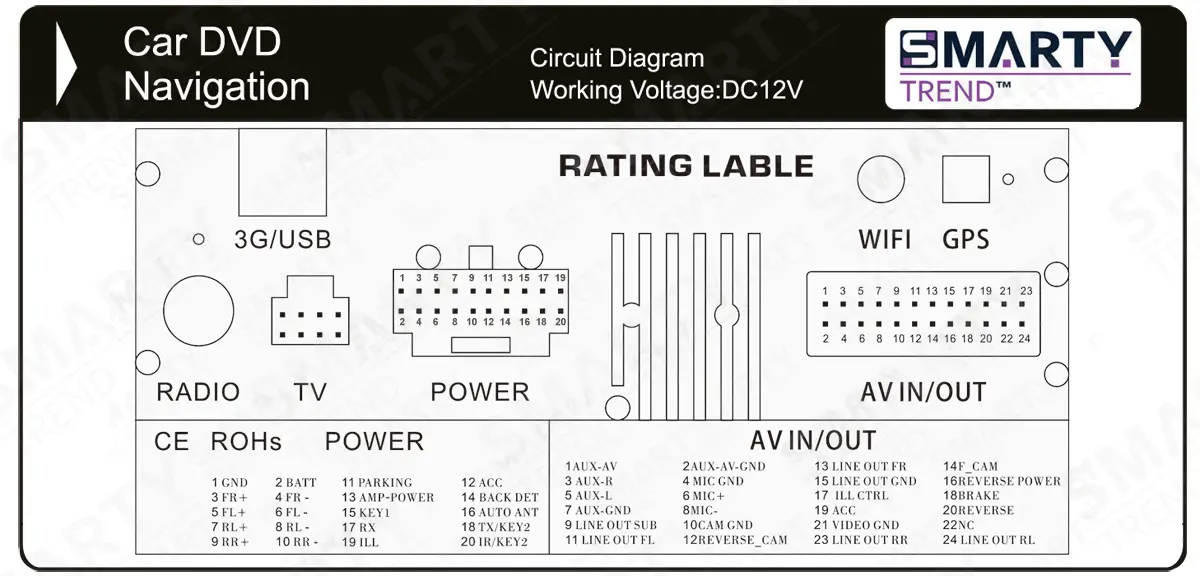

1-DIN head unit, model #2
